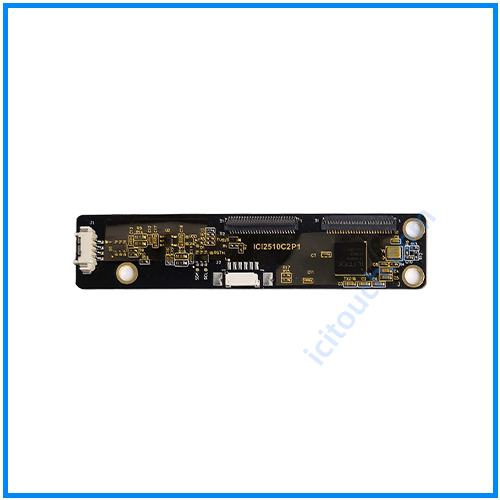

| Touch C/B | ICI2510P.C2.P1.V1 | ICI2510P.C2.P2.V1 | ICI2510P.C3.P1.V1 |
| Board Size | L=80mm,W=17mm | L=54.5mm,W=34mm | L=75mm,W=28mm |
| Channels | RX61*TX35 | RX55*TX43 ; RX62*TX36 | RX61*TX35 |
| Host Interface | USB+I2C | USB+I2C | USB+I2C+RS232 |
| FPC Connector | 51*51 pin_0.3 Pitch | 64*40 pin_0.5 Pitch | 51*51 pin_0.3 Pitch |
| Noise Immunity | CS :10Vrms | CS :10Vrms | CS :10Vrms |
| T5 Lamp(4-feet) Distance 15cm | T5 Lamp(4-feet) Distance 15cm | T5 Lamp(4-feet) Distance 15cm | |
| GND Gasket | Yes | Yes | Yes |
| Support Size | 10.1”~21.5” | 10.1”~21.5” | 10.1”~21.5” |
| Support Size | ≦17.3” | ≦17.3” | ≦15.6” |
| (Pass Win 8/10) | |||
| Passive Stylus | 0.6*sensor pitch @ CG <=10mm | 0.6*sensor pitch @ CG <=10mm | 0.6*sensor pitch @ CG <=10mm |
| Support CG | ≦10mm (suggest ≦ 6mm) | ≦10mm (suggest ≦ 6mm) | ≦10mm (suggest ≦ 6mm) |
| Waterproof | 10cc water drop No ghost | 10cc water drop No ghost | 10cc water drop No ghost |
| 1cc water spray 1 touch points | 1cc water spray 1 touch points | 1cc water spray 1 touch points | |
| Glove | ≦ 2mm @ CG ≦ 8mm | ≦ 2mm @ CG ≦ 8mm | ≦ 2mm @ CG ≦ 8mm |
