Industrial grade

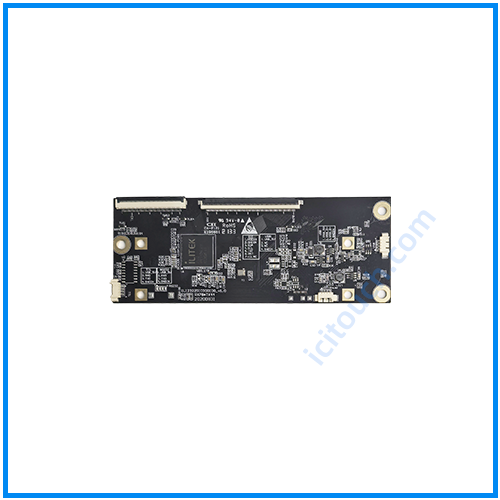

ICI2322 Control Board-1

Touch C/B	ICI2322P.C3.P1.V1	ICI2322P.C3.P2.V1
Board Size	L=125mm,W=45mm	L=125mm,W=47.3mm
Channels	RX90*TX50	RX78*TX44
Host Interface	USB+I2C+UART	USB+I2C+UART
FPC Connector	605050 pin _0.5 Pitch	80*54 pin _0.5 Pitch
Noise Immunity	CS :10Vrms T5 Lamp(4-feet) Distance 15cm	CS :10Vrms T5 Lamp(4-feet) Distance 15cm
GND Gasket	Yes	Yes
Support Size	17.3~55”	17.3~55”
Support Size (Pass Win 8/10)	17.3~32”	17.3~32”
Passive Stylus	0.6*sensor pitch@ CG<= 2 mm (Under 17.3”)	0.6*sensor pitch@ CG<= 2 mm (Under 17.3”)
Support CG	≦10mm (suggest ≦ 6mm)	≦10mm (suggest ≦ 6mm)
Waterproof	10cc water drop 1touch points 1cc water spray2touch points	10cc water drop 1touch points 1cc water spray2touch points
